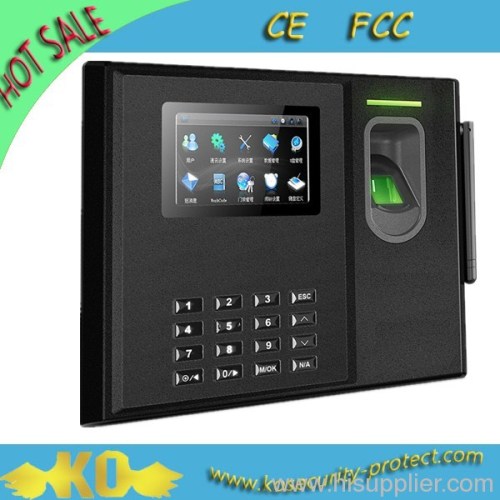

Biometric Fingerprint Reader for Time Attendance With Built in Backup Battery KO-Z101
Z101 is an innovative biometric fingerprint reader for
time attendance applications, Builtin 2000 mAh backup battery can eliminates the trouble of powerfailure. Support optional GPRS and Wi-Fi.
The BS101 features the fastest commercialbased fingerprint matching algorithm and highperformance, highimage quality optical fingerprint sensor. The 3" TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.
Feature
Color TFT screen with GUI Interface for ease of use
Optical Sensor
1 touch a-second user recognition
Reads Fingerprint and/or PINs
Optional integrated proximity or smart card reader
Built-in Serial and Ethernet ports
Multi Language Support
Built-in battery backup provides approx 4 hours continuous operation
Optional built-in wireless Wi-Fi or GPRS for wireless communication
Real-time 1-touch data export 3rd party hosted & non-hosted applications
SDK available for OEM customers and software developers
Specifications
| 3000 templates |
Transaction Capacity | 100,000 |
Hardware Platform | BIO510 |
Sensor | Optical Sensor |
Algorithm Version | BIO VX10.0 |
Communication | RS232/485, TCP/IP, USB-Client, USB-Host |
Standard Functions | Work code, SMS, DLST, Self-Service Query, Automatic Status Switch, Back-up battery |
Optional Functions | ID/Mifare/HID, Extensible barcode, Relay-bell, Scheduled-bell, Web-server, SOAP, 9 digit user ID, Wi-Fi, GPRS |
Display | 3 inches TFT Screen |
Power Supply | 12V DC 1.5A |
Operating Temperature | 0 ℃- 45 ℃ |
Operating Humidity | 20%-80% |
Dimension | 210×157×50mm |
